This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.
Use:
This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and Paper Roll, etc. And can cut edge, separate and cut material according to different requirements during production.
Feature
1)This machine install a round knife device, it can slit the rolls paper within 350g.
2)Independent master control screen, more flexible and even easier operation.

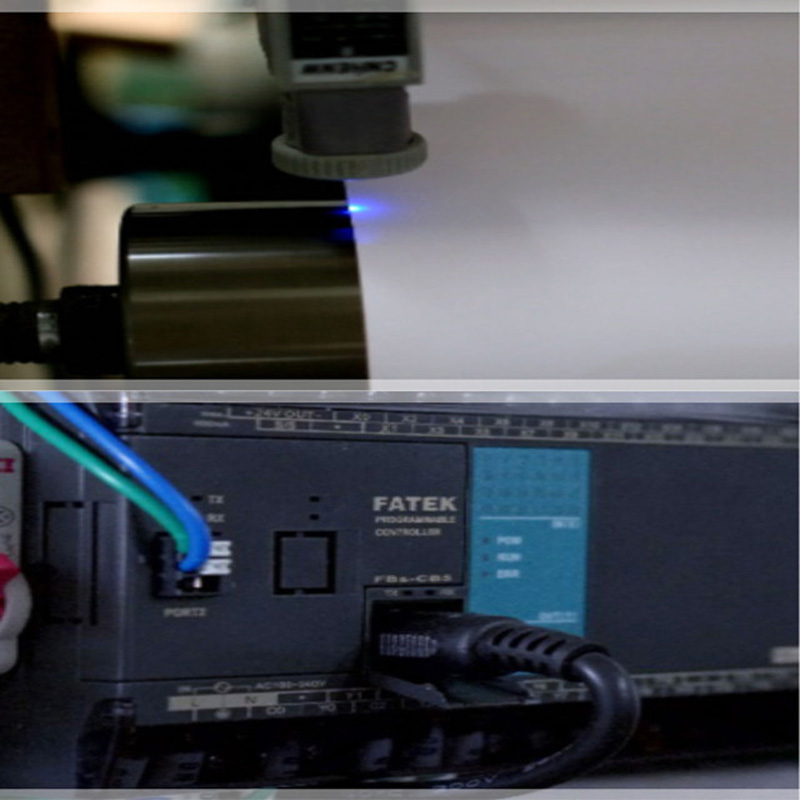

3)Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4)Releasing tension adopts magnetic powder clutch control.
5)Rolling adopts magnetic clutch control.
6)Automatic slitter edge blowing-inhaling device.
7)Automatic meter counting of material moving length.
Main Technical Specification
|
Model |
HWFQ-1300A |
HWFQ-1600A |
|
Suitable material |
PE,PP, BOPP, PET,CPP,Paper, PVC, etc |
|
|
Max. Unwind diameter |
850mm |
850mm |
|
Max. Unwind width |
100-1300mm |
100-1600mm |
|
Paper core inner diameter |
76mm |
76mm |
|
Max. cutting width |
40-1300mm |
40-1600mm |
|
Machine max.speed |
10-200m/min |
10-200m/min |
|
Max. slitting speed |
10-170m/min (perforation running speed different) |
|
|
Rewind diameter |
40-600mm×2 roll(depend on roll width) |
|
|
Main motor |
4kw |
5.5KW |
|
Accurate of adjustment |
±0.5mm |
±0.5mm |
|
Total power |
6KW |
7.5KW |
|
Gross weight |
2500KG |
3300KG |
|
Overall size |
3200×2200×1700mm |
3200×2400×1700mm |

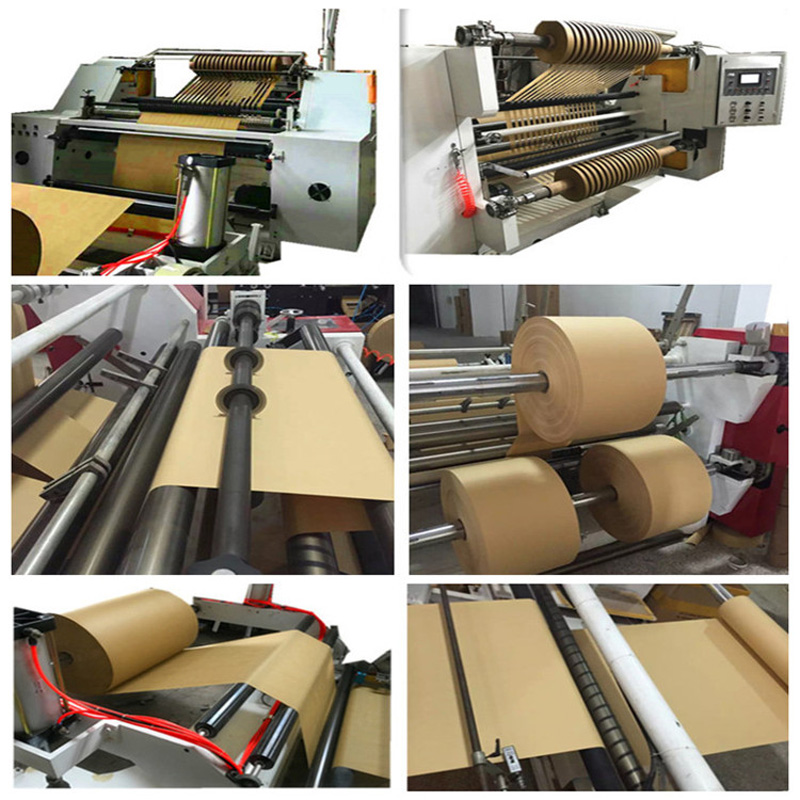

Details Photo:

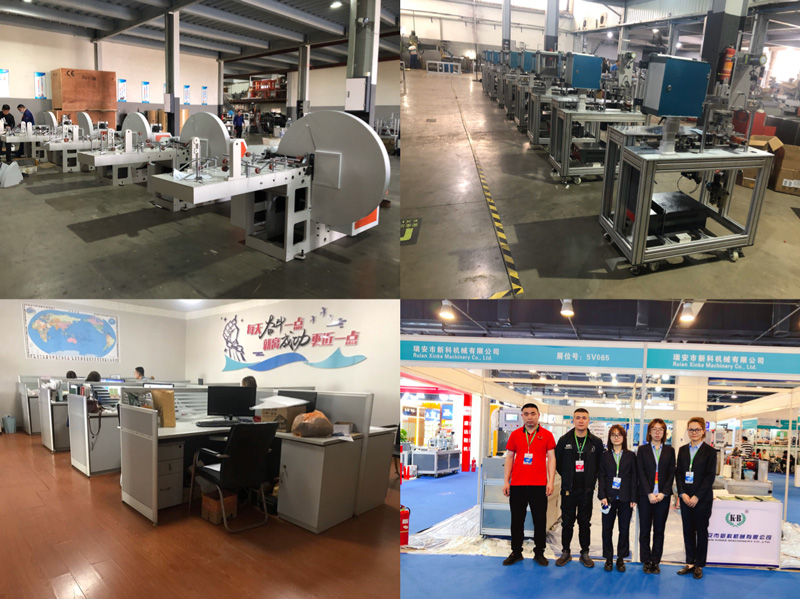

Company Information:
FAQ:
Q1. Payment Terms
A1. TT 30% down payment, 70% before shipment.
Q2. Delivery Time
A2. 15-30 working days from the receipt of the down payment.
Q3. Machine installation
A3. HONGWEI could assign the technician to the place for the on-site installation if requested by the purchaser.
Q4. Technical Support
A4. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5. Demo and Testing
A5. Hongwei built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
